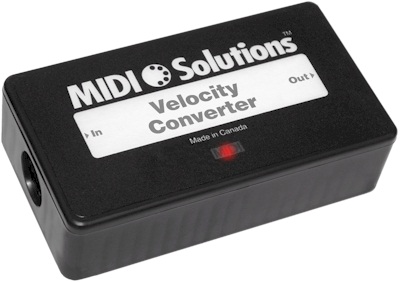

MIDI Solutions Velocity Converter

The MIDI Solutions Velocity Converter applies selected velocity curves to incoming MIDI notes. Curves can be selected from 40 preset curves or a user defined curve. Even though the 40 presets offer a wide range of curves that are enough to cover most needs, the user curve makes the Velocity Converter a completely versatile device by allowing one curve to be created to an exact specification.

The Velocity Converter can apply a separate curve to each MIDI channel, allowing the velocity response of a sending keyboard to be matched to individual sound modules that are each set to receive on a different MIDI channel.

Another feature of the Velocity Converter is the option to assign velocities based on a selected incoming Control Change value. In this mode, the Velocity Converter monitors the value of a selected Control Change message on a selected MIDI channel, and applies this value to all incoming velocities on that MIDI channel. It is also possible to add an offset to this value to keep the outgoing velocities above a specified level.

The Velocity Converter is programmed by sending it MIDI System Exclusive messages (see FAQs - Programming). This can be done easily with the Processors Programming Tools software. Once programmed, its settings are retained even after power is removed. The Velocity Converter can be reprogrammed with new settings as often as needed.

The Velocity Converter is MIDI-powered, and requires no batteries or power supply to operate with most MIDI products (see FAQs - Power and FAQs - LED for more information). A MIDI indicator LED lights up when the product is powered and flashes when MIDI data passes through it.

weight: 3.8 oz.
dimensions: 4-3/16" x 2-3/16" x 1-3/32"


MIDI Solutions Velocity Converter Block Diagram:



Learn more about the MIDI Solutions Velocity Converter
